SDI 2012 & 2422 SPECIALTY +5V ACCELEROMETERS

Industrial test and measurement accelerometers with low power draw, ultra-low noise, and long-term reliability.

MODEL 2422 3-AXIS MODULE

Meet the 2012 & 2422: Reliable, Low-Power Performance for Demanding Environments

The SDI Models 2012 (1-axis) and 2422 (3-axis) MEMS DC Accelerometers are purpose-built for systems that operate on constrained power supplies or demand a stable +5V excitation. With low-noise accelerometer designs and a rugged aluminum case, these modules are a top choice for test and measurement professionals.

Key Features And Use Cases

Key Performance Features
  • Low Noise: 10 μg/√Hz Typical for ±2g Full Scale Versions
  • -55 to +125°C Operating Temperature Range
  • +5 VDC Power for Low Voltage Power Supply Systems
  • Excellent Long-Term Stability
  • ±4V Differential Output or 0.5V to 4.5V Single Ended Output
  • Responds to frequencies from zero (DC) to 2000+ Hz
  • Integrated Shielded Cable
  • Simple Four (4) or Eight (8) Wire Connections
  • Rugged Anodized Aluminum Case
  • Fully Calibrated and Serialized for Traceability
Applications
  • Robotics
  • Seismic Monitoring
  • Tilt Sensing
  • Vibration Analysis
  • Automotive Testing
  • Impact Sensing
  • Instrumentation
  • Monitoring
  • OEM Integration

Related Products

1-Axis
3-Axis
Surface Mount

Looking for alternate versions?

Click Here
Download Data Sheet
Place An Order

Low Power, Signal Clarity, and Reliable Performance

The SDI 2012 and 2422 modules deliver reliable performance on limited power, exceptional signal quality, and long-term durability, making them a dependable choice for engineers operating in precision-critical environments.

Low Power, High Precision

The SDI 2012 and 2422 modules are ideal for installations where power is at a premium. With a steady +5V supply, these test and measurement MEMS DC accelerometers operate efficiently without sacrificing data quality, making them a smart fit for embedded or mobile applications where consistent performance is critical.

Exceptional Signal Quality

These low noise accelerometers offer 10 μg/√Hz performance at ±2g, ensuring accurate and clean data output even in high-vibration or fast-response environments. Whether monitoring subtle tilts or sharp impacts, the signal remains stable, linear, and clear across the full operating range.

Compare Specifications

Access the complete technical specs for the 2012 & 2422 accelerometers, including g-range options, frequency response, sensitivity, and shock ratings.
g Range Sensitivity,
Differential		 Frequency
Response
(Typ, 3 dB)		 Frequency
Response
(Min, 3 dB)		 Frequency
Response
(Typ, 5%)		 Output Noise,
Differential
(RMS, Typ)		 Max. Mechanical
Shock (0.1 ms)
g mV/g Hz Hz Hz μg/(root Hz) g (peak)
±2 2000 0 – 525 0 – 300 0 – 250 7 2000
±5 800 0 – 800 0 – 420 0 – 400 12 2000
±10 400 0 – 1100 0 – 660 0 – 700 18 5000
±25 160 0 – 1750 0 – 1050 0 – 1300 25 5000
±50 80 0 – 2100 0 – 1400 0 – 1600 50 5000
±100 40 0 – 3000 0 – 1700 0 – 1700 100 5000
±200 20 0 – 3600 0 – 2100 0 – 1900 200 5000
±400 10 0 – 4200 0 – 2400 0 – 2000 400 5000

The 2012 features a 10’ integrated cable and the 2422 is built with an integrated 3’ cable. Both models feature one (1) or three (3) hermetically sealed, low noise SDI surface mount accelerometers, which are individually tested, programmed, and calibrated by SDI.

The cable’s shield is electrically connected to the case while the ground (GND) wire is isolated from the case. The robust, anodized aluminum case is epoxy sealed and can be mounted easily via two screws, an adhesive, or by attaching a magnet.

Need Help Choosing the Right Accelerometer?

Not sure which accelerometer fits your project? Talk to an SDI expert today. Our sales engineers provide quick, same-day replies whenever possible and offer tailored support to help you solve your sensing challenges.
Speak with SDI

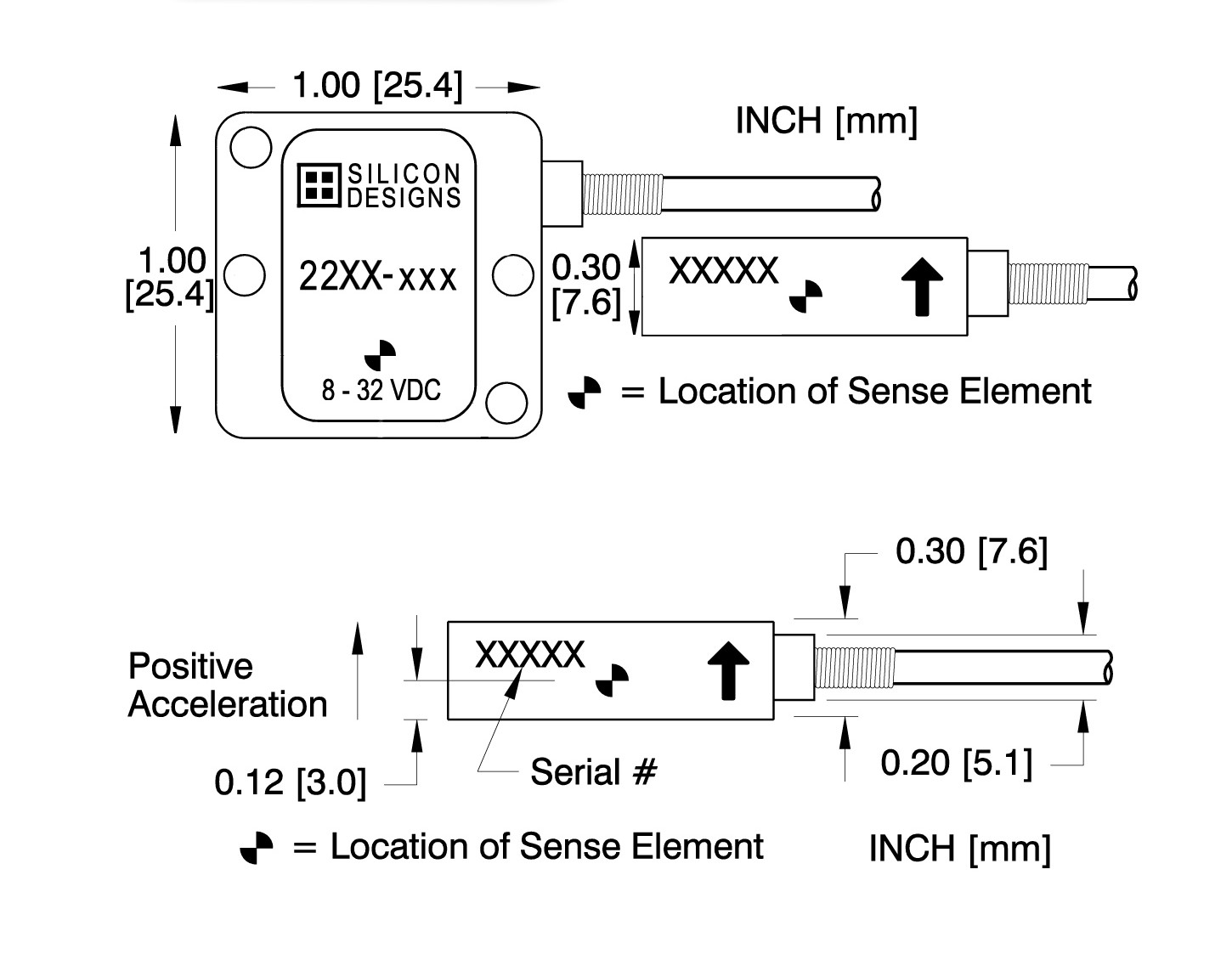

Performance and Packaging

Compact and robust, both models are available in anodized aluminum enclosures designed for easy installation. The integrated cable and rugged case support both adhesive and mechanical mounting to meet your project’s needs.

SDI Model 2012 accelerometer cases

SDI Model 2012 accelerometer cases

SDI Model 2422 accelerometer cases

SDI Model 2012 accelerometer cases

Performance – All Versions

All Models: Unless otherwise specified, Vs=+8 to +32 VDC, TC=25°C, Differential Mode. Span = ±g range = 8000 mV.

PARAMETER MIN TYP MAX UNITS
Bias Calibration Error (%) 0.25 0.6 ± % of span
Bias Calibration Error (mV) 25 60 ± mV
Scale Factor Calibration Error 1 0.5 1.25 ± %
Non-Linearity (-90 to +90% of span) 1 0.15 0.5 ± % of span
Bias Temperature Shift (Coefficient) -200 0 +200 (PPM of span)/°C
Scale Factor Temperature Shift (Coefficient) -200 0 +200 PPM/°C
Cross Axis Sensitivity 2 3 ± %
Power Supply Rejection Ratio 50 >65 dB
Output Impedance (2012 / 2422) 90 / 1 Ω
Output Common Mode Voltage 2.5 VDC
Operating Voltage 4.75 5 5.25 VDC
Operating Current (AOP & AON open) (2012 / 2422) 8 / 21 10 / 30 mA DC
Operating Temperature -55 +125 °C
Mass 2012 / 2422 (not including cable) 8 / 21 grams
Cable Mass (3’ integrated cable, 2012 / 2422) 14 / 25 grams/meter

Note (1): For 2g thru 50g only; 100g and greater versions are tested and specified from -65 to +65g.

NOTICE: Stresses greater than those listed may cause permanent damage to the device. These are maximum stress ratings only. Functional operation of the device at or above these conditions is not implied.

Operational Highlights

SDI Models 2012 and 2422 MEMS DC Accelerometers provide optimal performance when they are connected to instrumentation in a differential configuration using both the AOP and AON output signals, but they also support single ended operation for complete flexibility.

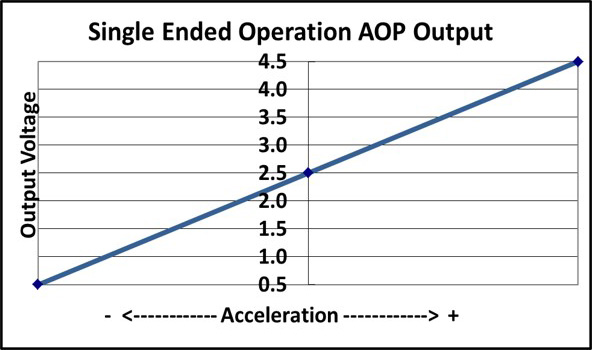

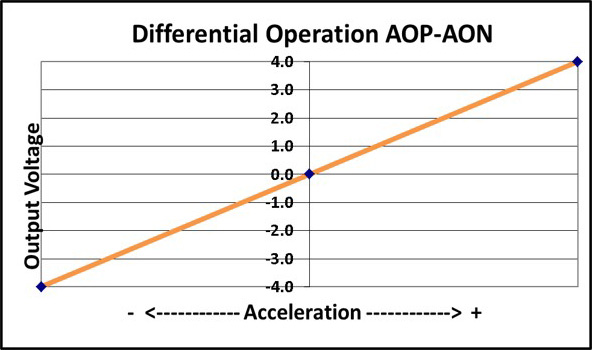

These accelerometers produce differential analog output voltage pairs (AON & AOP) which vary with acceleration. The signal outputs are fully differential about a common mode voltage of approximately 2.5 volts. At zero acceleration, the output differential voltage is nominally 0 volts DC; at full scale acceleration, the output is ±4 volts DC, respectively, as shown in the figure. The output scale factor is independent from the supply voltage of +5 volts.

When a differential connection is not possible, SDI recommends connecting the accelerometer to instrumentation in single ended mode by connecting AOP and GND to the instrumentation and leaving AON disconnected. The signal to noise ratio and sensitivity are reduced by half for a single-ended vs. a differential connection.

Request A Quote

Frequently Asked Questions

Here are some of the most common questions we get about our MEMS accelerometers, and the answers that can help you move forward with confidence. For an extensive list, please visit our FAQ page.
Why does the accelerometer read zero G's when it's in free fall?

All accelerometers are used to measure increasing or decreasing acceleration, and they can detect vibration because it is a change in acceleration between multiple directions. Free fall, by definition, is a static acceleration, which means the object may be moving, but its acceleration is not changing at all. SDI’s MEMS DC accelerometer technology allows it to measure free fall because it doesn’t require any change of acceleration to supply data, and therefore it will report back 0g of acceleration.

How do I choose the right g-range for my application?

The g-range of your accelerometer should match the maximum acceleration your system is expected to experience—but avoid going unnecessarily high. Selecting too high of a g-range can reduce measurement clarity, while too low of a range can cause the sensor to saturate if the acceleration exceeds its limit. Also consider the frequency response. Each Silicon Designs sensor has a MEMS sense element tuned to its specific g-range, which affects its frequency range and noise profile. Be sure to check the product datasheet or visit our How To Choose Your Accelerometer guide for more detailed recommendations. You can also reach out to our team for help identifying the best fit for your application.

My accelerometer appears to be broken. When I place it on the desk with the lid facing up, it reads +1G. How do I fix this?

SDI’s MEMS DC accelerometers are designed to respond to the Earth’s gravity. If you are on Earth, then you are in a +1g gravitational field. Turn the device over and you will see a -1g reading, which you can use to perform your own bias calibration of the device. Visit our Technology page to learn more about how SDI’s accelerometers work. Also see the How to Calibrate Your Accelerometer page for how to use this feature for self-calibration.

Do I need a charge amplifier or signal conditioning to use my Silicon Designs MEMS DC accelerometer module?

All Silicon Designs MEMS DC accelerometers feature integrated amplifiers, so an additional one is not required. Signal conditioning is optional.

Are Silicon Designs plug-&-play MEMS DC accelerometer modules waterproof? What is their IP designation?

While all modules are considered weatherproof, only Models 2240 and 2480 may be used while submerged. We recommend the protection of the connector from exposure. Please Contact Us prior to use, and we’ll walk you through the process. The IP designation of the other modules is IP61.
