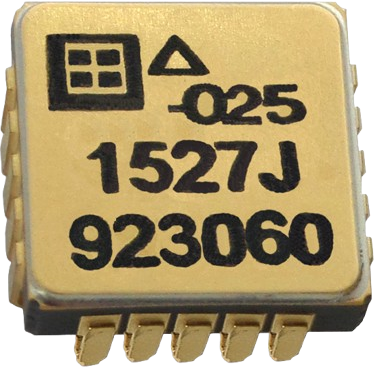

Inertial-Grade Surface Mount MEMS DC Accelerometers
High-Stability MEMS DC Accelerometers for Precision Inertial Sensing
Silicon Designs’ inertial surface mount accelerometers are engineered for critical sensing applications that demand not just reliability, but measurable performance in real-time. Built using the same durable design as our rugged industrial models, these sensors excel in tactical-grade applications with enhanced Allan variance, long-term bias repeatability, and scale factor stability.
- ±2g to ±400g
- low-noise surface mount
- 100% factory testing and calibration
Compare Specs at a Glance
| g Range | Sensitivity, Differential |
Frequency Response (Typ, 3 dB) |
Frequency Response (Min, 3 dB) |
Frequency Response (Typ, 5%) |
Output Noise, Differential (RMS, Typ) |
Max. Mechanical Shock (0.1 ms) |
|---|---|---|---|---|---|---|
| g | mV/g | Hz | Hz | Hz | μg/(root Hz) | g (peak) |
| ±5 | 800 | 0 – 450 | 0 – 300 | 0 – 250 | 10 | 2000 |
| ±10 | 400 | 0 – 600 | 0 – 400 | 0 – 500 | 12 | 2000 |
| ±25 | 160 | 0 – 900 | 0 – 600 | 0 – 650 | 25 | 5000 |
| ±50 | 80 | 0 – 1200 | 0 – 900 | 0 – 800 | 50 | 5000 |
Our Inertial-Grade Surface Mount MEMS DC Accelerometers

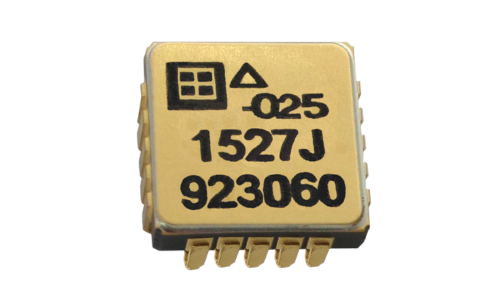

MODEL 1527 TACTICAL-GRADE INERTIAL SURFACE MOUNT
- INFO
- STATS
- APPLICATIONS
- Power: +5 VDC
-
Output:
- Differential: +/- 4 V
- Single Ended: +0.5V to +4.5V
- Current: 5 mA
- Mass: J-LCC: 0.68 grams
-
Package:
- J-Lead 20 Pin LCC
- Material: Gold & Ceramic
- Size: 9mm x 9mm x 5mm
- Temperature: -55 to +125°C
-
Available:
- 10g
- 25g
- 50g
- Tactical-grade IMU
- Replacement of quartz inertial accelerometers
- Autopilot or flight control
- High-stability reference accelerometer
- High shock vehicle navigation
